As a prominent supplier, Excellent Overseas is responsible for delivering unparalleled quality in API 5L X60 Seamless Pipe Suppliers and API 5L X60 PSL2 Material Stock from leading Manufacturers like Tubes, MSL, Seah, Hyundai, ArcelorMittal and NSSMC.
Table of Content
API 5L X60 Pipe Supply Range and Dimensions
API 5L X60 Welded Pipe Dimensions
Refer to the API 5L X60 PSL1 Line Pipe Material Properties and Applications
| NPS (inches) | Wall Thickness (inches) | Diameter | Weight (lb/ft) |
|---|---|---|---|
| 2 | .154 | 2.375 | 2.27 |
| 3 | .216 | 3.500 | 5.79 |
| 4 | .237 | 4.500 | 7.65 |
| 6 | .280 | 6.625 | 11.43 |
| 8 | .322 | 8.625 | 17.21 |
| 10 | .365 | 10.750 | 25.45 |
| 12 | .406 | 12.750 | 31.56 |
| 14 | .437 | 14 | 36.95 |
| 16 | .500 | 16 | 43.50 |
| 18 | .500 | 18 | 49.54 |
| 20 | .500 | 20 | 56.68 |
| 24 | .500 | 24 | 68.30 |
Manufacturers in Stock
L415 Seamless Pipe Chemical Composition
| Name | Product Form | C | Si | Mn | P | S | V | Nb | Ti | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| X60 | TS | ≤ 0.26 | - | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | c | c | c | - |
| TW | ≤ 0.24 | - | ≤ 1.40 | ≤ 0.030 | ≤ 0.030 | c | c | c | - | |
| X60N | TS / TW | ≤ 0.22 | ≤ 0.45 | ≤ 1.60 | ≤ 0.025 | ≤ 0.015 | ≤ 0.10c | ≤ 0.05c | ≤ 0.04c | - |
| L415N | TS / TW | ≤ 0.22 | ≤ 0.45 | ≤ 1.60 | ≤ 0.025 | ≤ 0.015 | ≤ 0.102 | ≤ 0.052 | ≤ 0.042 | 5) |
TS = Seamless Tubes; TW = Welded Tubes
X60 Carbon Steel ERW Pipe Mechanical Properties
NACE MR0175 / ISO 15156 Approved API 5L X60 Pipe Supplier, delivering high yield strength carbon steel line pipes with mill test certificates
| Steel Grade | Delivery Condition | Yield / Proof Strength Rt0.5 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Elongation (%) | Impact Energy ISO-V - Transverse (J) at 0°C |
|---|---|---|---|---|---|
| X60 PSL 1 | a) | min. 415 | min. 520 | 25 | - |
| L415 PSL 1 | a) | min. 415 | min. 520 | 20 | - |
| X60N PSL 2 | N | 415 - 565 | 520 - 760 | 25 | - |
| L415N PSL 2 | N | 415 - 565 | 520 - 760 | 20 | 40 transverse / 60 longitudinal |
API 5L X60 PSL1 Pipe Equivalent Grades
| Standard | Specification Level | Equivalent Grade | Notes |
|---|---|---|---|
| ASTM API 5L (Specification for line pipe) |
PSL1 | L415 or X60 | Basic level standard requirement |
| PSL2 | L415Q or X60Q L415M or X60M |
Enhanced requirements, Charpy testing mandatory | |
| DNV-OS-F101 | Offshore Standard | 415 / 415U / 415S | Submarine pipeline systems |
| EN 10208-2 | European Standard | L415 | Steel pipes for combustible fluids |
Excellent Overseas is a Reliable API 5L X60 Pipe Stockist With Ready Inventory.
Leading API 5L X60 pipe stockist worldwide. Request stock list, price and full documentation.
Quote NowEN 10208-2 L415 LSAW Pipe Heat Treatment
| Heat Treatment |
|---|
| Quenched and Tempered |
| 940° C Water for 15 min. and 680° C Air for 60 min. |
API 5L X60 Seamless Pipe Delivery Conditions
| PSL | Delivery Condition | Grade |
|---|---|---|
| PSL 1 | As-rolled, N+ rolled, TM formed/rolled, Normalized, N&T | X60 |
| PSL 2 | Q & T | X60Q |
| TM rolled/formed | X60M |
Applications of API 5L X60 Pipes

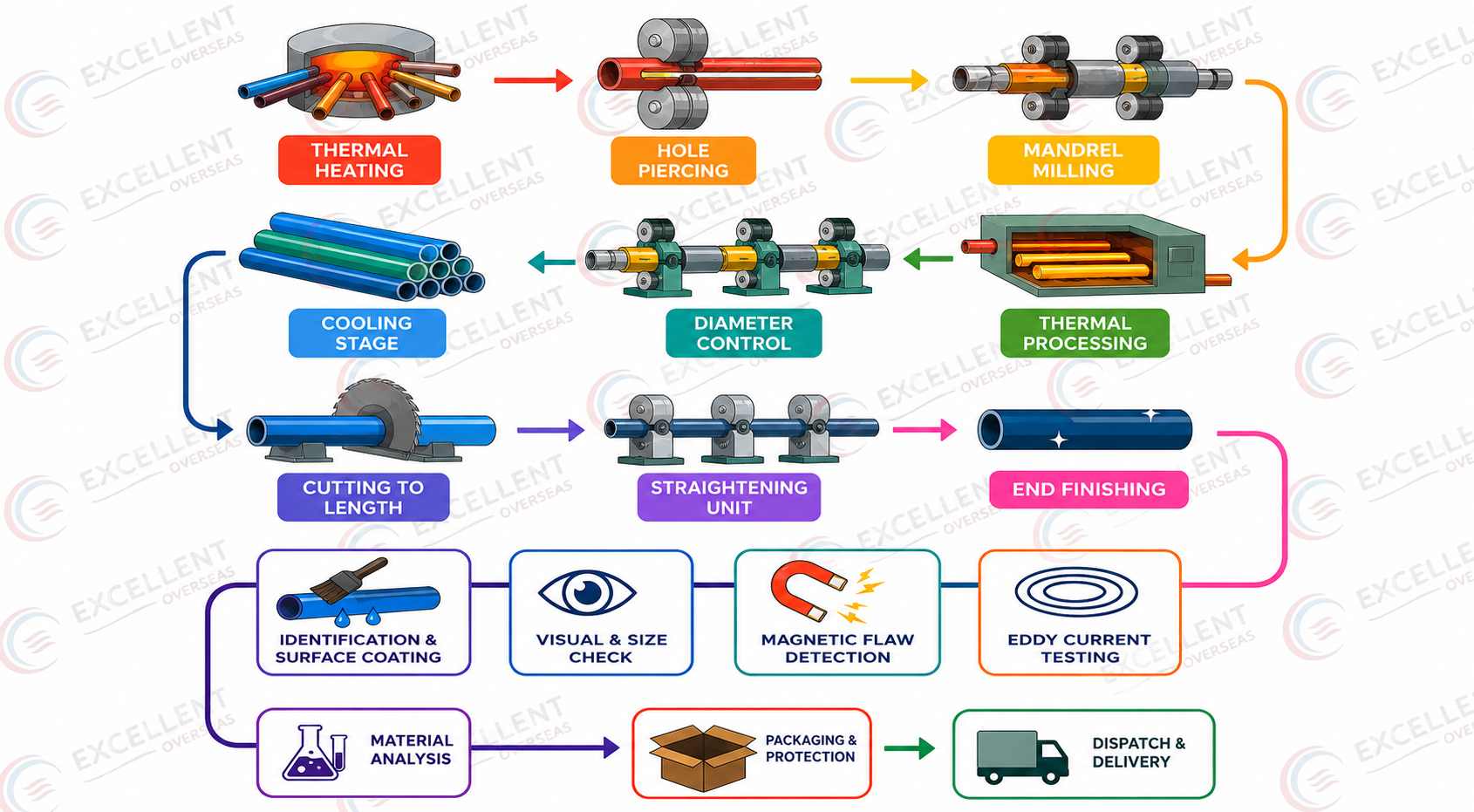

Process of Manufacturing
X60 Grade PSL2 Line Pipe Coating
Excellent Overseas supplies HIC & SSCC Tested API 5L X60 Pipe in Sarawak, Selangor, Pahang, Pathum Thani, West Java and Kepulauan RIAU with Multilayer Coating as per Requirement.
Surface Finish: Natural, Black Painting, Varnished
Lining/Cladding: CRA Clad and Lined Pipe
Protective Coatings: 3LPE, 3PP, FBE, 3PE
End Protection Caps: Plastic or Iron
